How to get access
- Which tier is suitable for me and my research project?
- Where can I get access?
- What are small, medium and large computing time projects?
- How do I reach the local Tier 3 centers?
- How do I reach the Tier 2 centers?
- How can HPC.NRW support me with my application?
- To the quick reference cards of all HPC centers
The declared goal of HPC.NRW is to provide scientists in NRW with easy and structured access to HPC computing resources.
HPC resources in Germany are arranged hierarchically in the so-called HPC performance pyramid, in which the smaller Tier-3 and Tier-2 systems cover entry-level requirements and large systems (Tier-2 to Tier-0) also enable large research projects:
- Tier-0 PRACE and EuroHPC
- Tier-1 Gauss Center for Supercomputing (GCS, JSC, HLRS, LRZ)
- Tier-2 Network for National High Performance Computing (NHR) and other Tier-2 centers
- Tier-3 local HPC centers of the universities
Which tier is suitable for me and my research project?
Scientists at German teaching and research institutions should, where available and suitable, use the resources of their local Tier 3 center. However, only members of the respective university are generally entitled to use these resources.
Good reasons to orientate yourself towards Tier 2 centers are when
- more resources are required than the local Tier 3 center can provide,
- a local Tier 3 center does not exist at the location,
- special requirements are placed on main memory, multi-cores / CPUs or GPUs, for example.
Where can I get access?
Members of a university with its own local Tier 3 center are always eligible for access.
NHR centers and other Tier 2 systems also provide resources for scientists from all public institutions. Among other things, this is also done in the role of Tier 3 substitute provision if no local Tier 3 center is available.
The application/usage authorisation can be found in the table below:
What are small, medium and large computing time projects?
The resource requirements are usually estimated in CPU core-hours (core-h). There are often ways to get easy access for testing and development, e.g. to estimate the computing time and prepare larger requests.
For example, if you want to use a computing node with 48 cores over the entire year (24/7), you would have to apply for 48 cores * 24 h * 365 days = 0.42 million core-hours.
Small projects generally comprise no more than 1 million core-h and normal large projects up to 10 million core-h. Large projects can go well beyond this.
| Computing project | Order of magnitude (per year) | Local HPC service (Tier-3 service) | NHR/Tier-2 service | GCS-Center (Tier-1), EuroHPC (Tier-0) |
|---|---|---|---|---|
| small | up to approx. 1 M CPU-Core-h | local center, small projects | NHR-Starter project, NHR-Test project | - |
| medium | up to approx. 15 M CPU-Core-h | dependent on local system size | NHR-Normal project | - |
| large | up to approx. 70 M CPU-Core-h | - | NHR-Large project | GCS Regular project |
| very large | beyond | - | - | GCS Large-Scale project |
How do I reach the local Tier 3 centers?

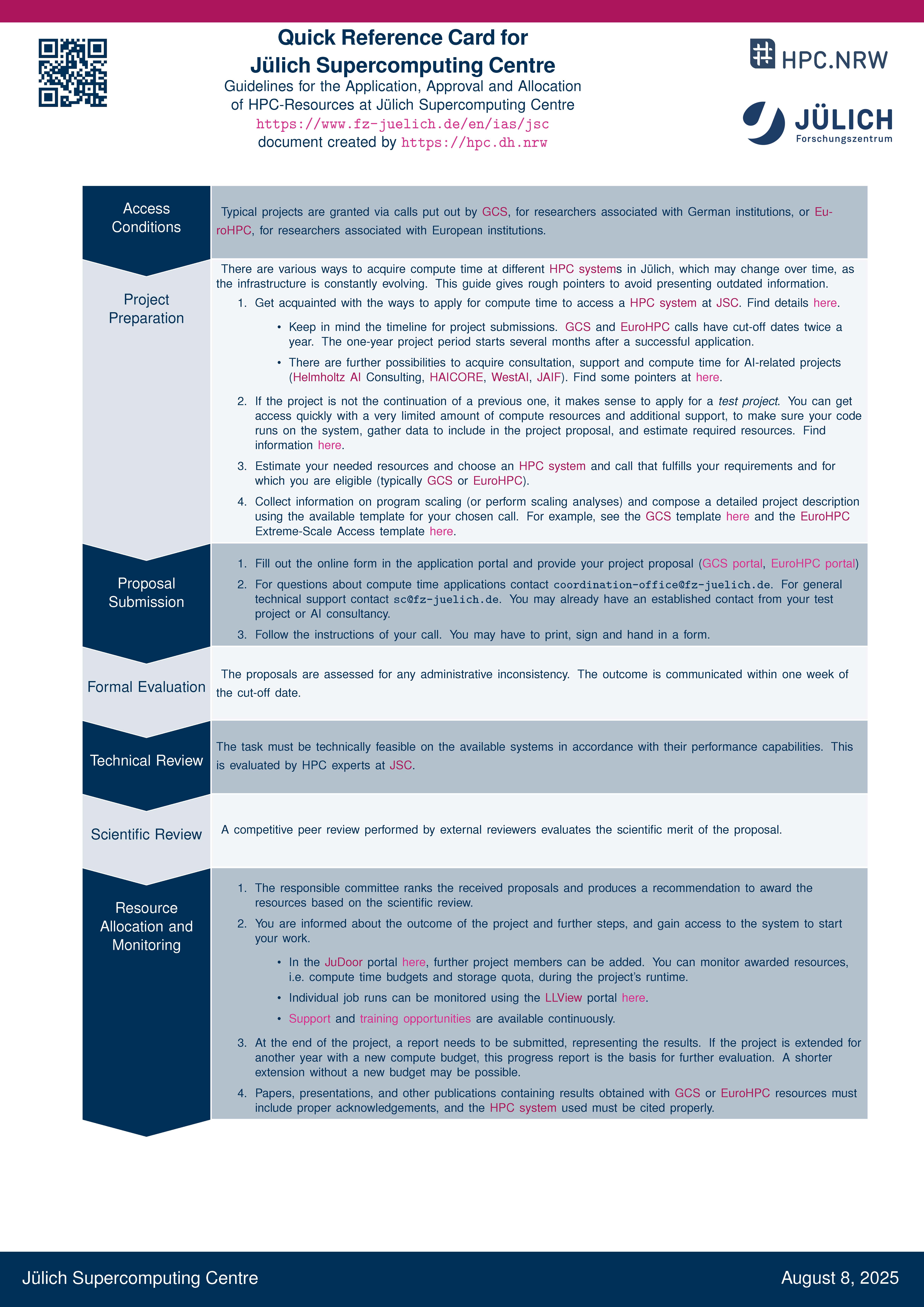

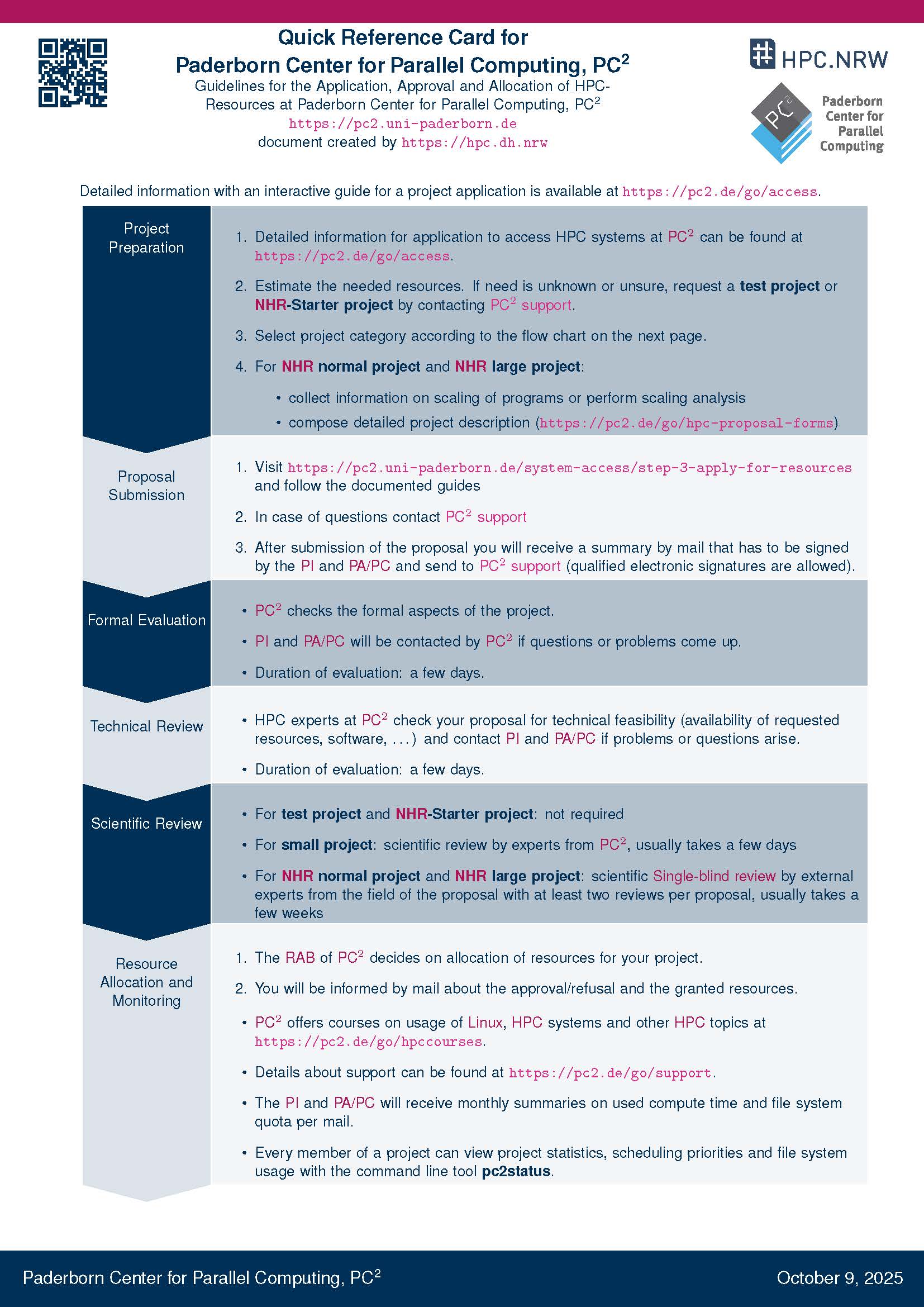

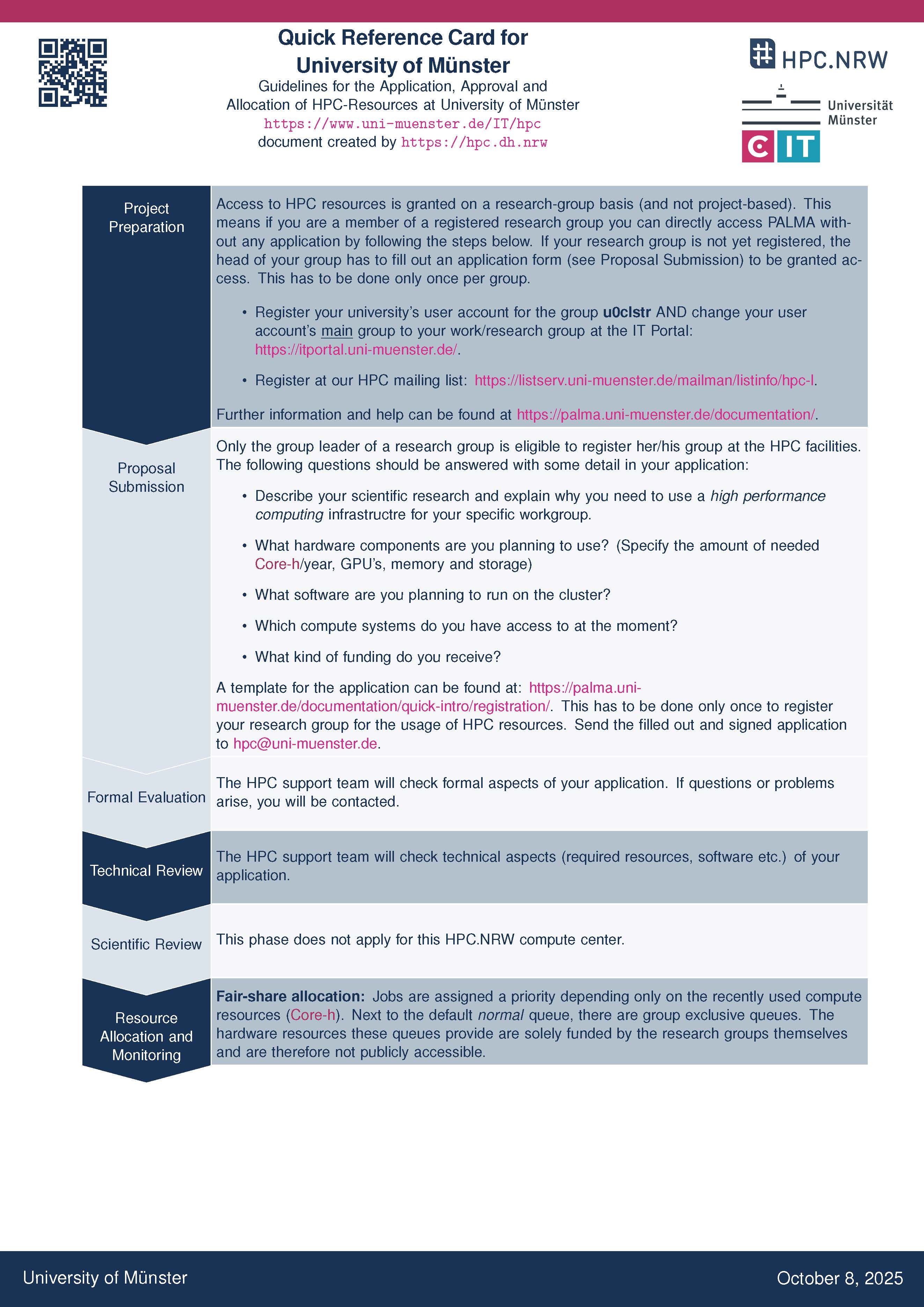

Please refer to the Quick Reference Cards below for details of the individual centers.
We also provide an overview of the local support teams.
How do I reach the Tier 2 centers?
While the resources of the local Tier-3 centers are usually only accessible to researchers from the local university, external researchers can also apply for computing time at Tier-2 centers.
Further information can be found here:
- Aachen (online): https://www.itc.rwth-aachen.de/hpc-project
- Cologne (PDF): https://rrzk.uni-koeln.de/en/hpc-projects/hpc/access-and-use-instructions
- Paderborn (online): https://pc2.uni-paderborn.de/go/access
Use the NHR website to apply for comp uting time to gain access to the above-mentioned and other NHR centers.
The NHR centers offer test and starter projects to make it easy to get started.
NHR centers also support users in various key areas. For example, NHR4CES concentrates on the field of "Computational Engineering Science". In the list of application support of the NHR centers you will find the contact paths, e.g. to chemistry, earth system sciences, humanities and social sciences, life sciences and physics.
How can HPC.NRW support me with my application?
HPC.NRW offers a wide-ranging counselling service for the use of HPC resources.
Feel free to contact us if you have any questions about computing time applications for NHR centers or Tier 1/0 systems.
In addition to the local Tier 3 centers, central Tier 3 resources are available as well.
It is also possible to use resources from other centers on a project-related basis within the tier 3 centers.
